DocuSign Integration in Salesforce
Step 1: Create a DocuSign account using the below link.

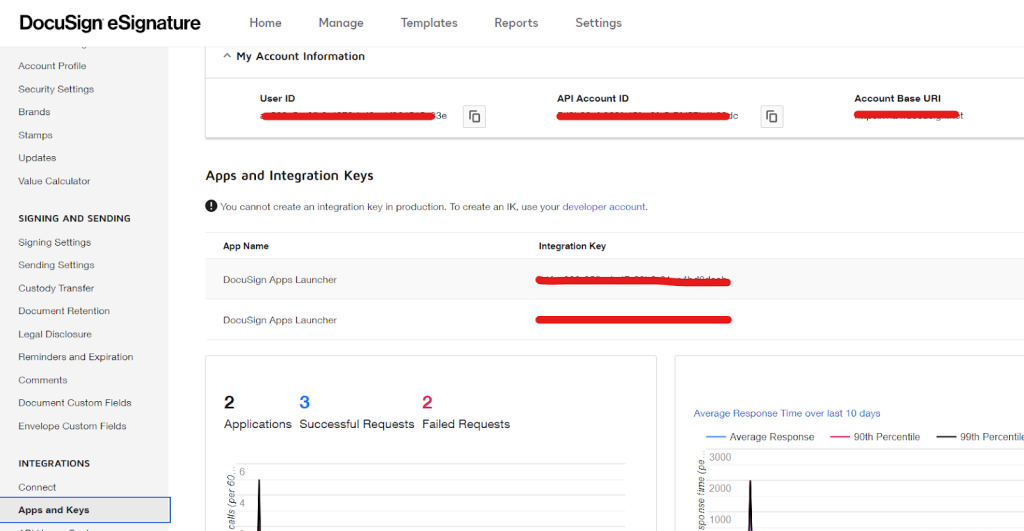

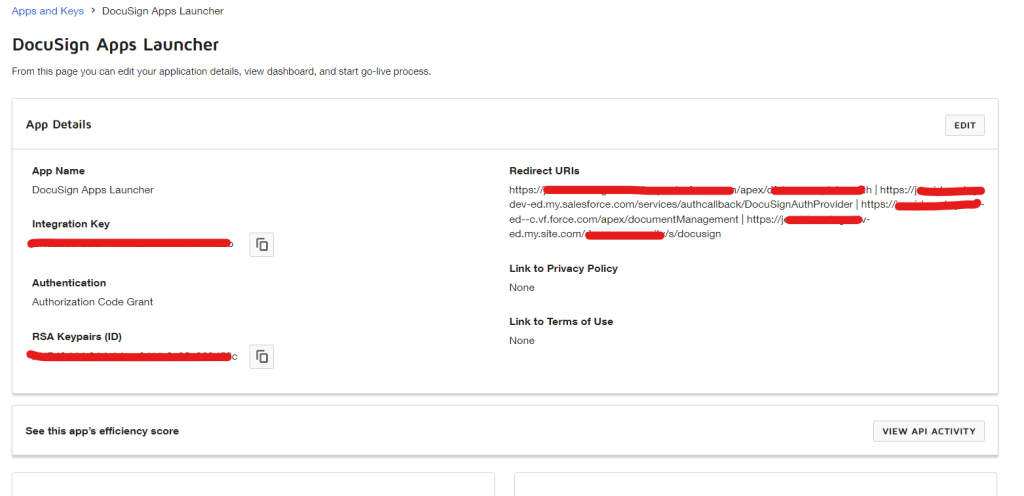

Step 2: After creating the account, Go to settings → apps and keys and create a new connected app for integration. After creating the app, save the integration key and private key.

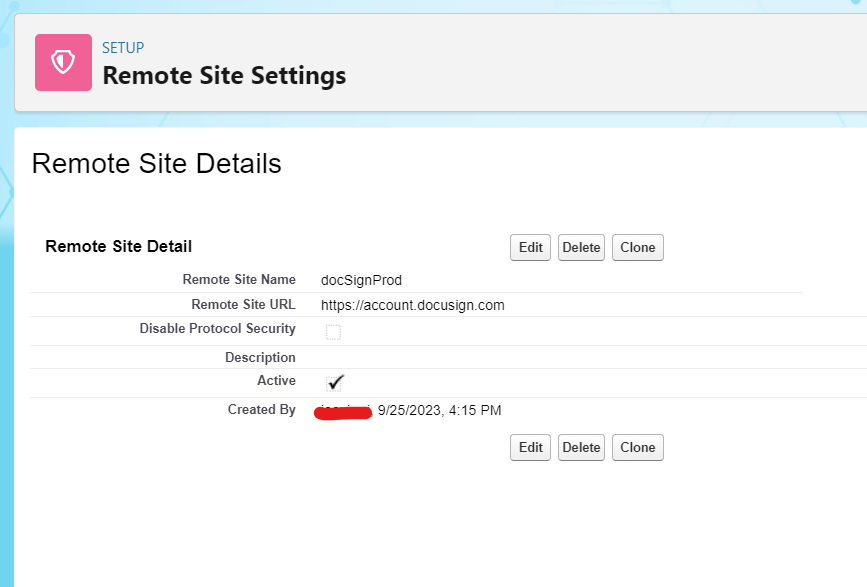

Step 3: Create remote site settings in salesforce via setup → remote site settings

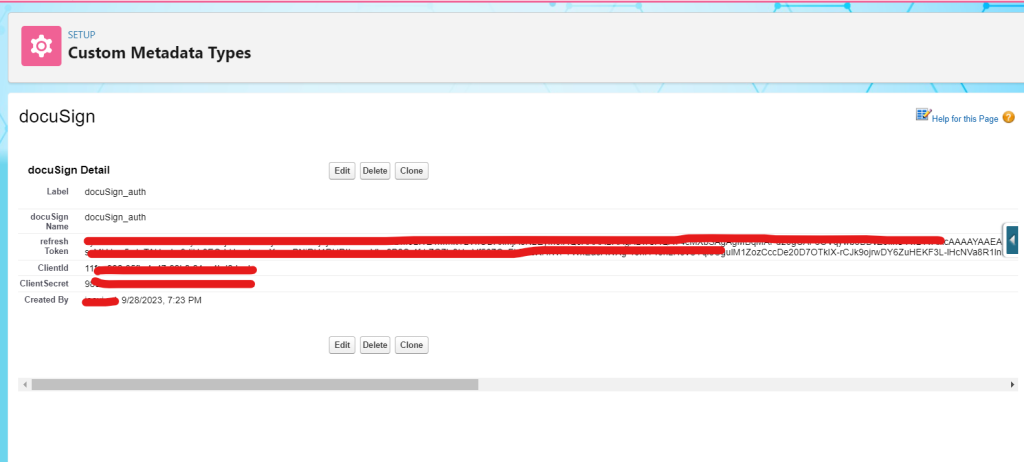

Step 4: Create a custom metadata record to store docusign credentials.
Step 5: Create an apex class to integrate DocuSign.
public with sharing class docuSignCtrl {
@AuraEnabled
public static docuSign__mdt docuSign_Credentials(){
docuSign__mdt docuSign_metadata=[select
id,ClientId__c,ClientSecret__c,refresh_Token__c from docuSign__mdt where
DeveloperName='docuSign_auth' limit 1];
return docuSign_metadata;
}
@AuraEnabled
public static String getAccessToken(String authCode){
auth_info docuSignAuth;
if(String.isNotBlank(authCode)){
docuSignAuth=getDocuSignToken(authCode);
if(String.isNotBlank(docuSignAuth.access_token)){
docuSign_accessToken=docuSignAuth.access_token;
}
}
return docuSign_accessToken;
}
public static auth_info getDocuSignToken(string authCode) {
docuSign__mdt docuSign_metadata=docuSign_Credentials();
Http http = new Http();
HttpRequest req = new HttpRequest();
req.setEndpoint('https://account.docusign.com/oauth/token?grant_type=authorization_code&code='+authCode);
req.setMethod('POST');
req.setHeader('Authorization', 'Basic '+EncodingUtil.base64Encode(blob.valueOf(docuSign_metadata.ClientId__c+':'+docuSign_metadata.ClientSecret__c)));
req.setHeader('Content-Type','application/json');
req.setHeader('Content-Length', '0');
HttpResponse rep = http.send(req);
auth_info docuSign_auth=(auth_info)
Json.deserialize(rep.getBody(), auth_info.class);
return docuSign_auth;
}
@AuraEnabled
public static String sendDoc_for_sign(String documentId,String accessToken,String recipientEmail,string recipientName){
contentVersion[] documentVersion=[select id,title,versionData from contentVersion where id=:documentId];
try {
String envelopBody='{}';
String documentBase64 = EncodingUtil.base64Encode(documentVersion.get(0).versionData);
String doc_Id ='001';
String fileExtension = 'pdf';
String name = documentVersion.get(0).title;
String jsonString = '{'
+'"documents": ['
+'{'
+'"documentBase64":"'+documentBase64+'",'
+'"documentId": "'+doc_Id+'",'
+'"fileExtension": "'+fileExtension+'",'
+'"name": "'+name+'",'
+'}'
+'],'
+'"emailSubject": "Simple Signing Example",'
+'"recipients": {'
+' "signers": ['
+' {'
+' "email":"'+recipientEmail+'",'
+' "name": "'+recipientName+'",'
+' "recipientId":"1001"'
+'},'
+']'
+'},'
+'"status": "sent"'
+'}';
Http httpTosent = new Http();
HttpRequest httpReq = new HttpRequest();
httpReq.setEndPoint('https://docusingBaseUrl/restapi/v2.1/accounts/docusignAccId/envelopes');
httpReq.setMethod('POST');
httpReq.setHeader('Authorization', 'Bearer '+accessToken);
httpReq.setHeader('Content-Type','application/json');
httpReq.setBody(jsonString);
httpReq.setTimeout(60000);
httpResponse res=httpTosent.send(httpReq);
system.debug(res.getBody());
return Json.serialize('{"recipient":"'+recipientEmail+'","envelope":'+res.getBody()+'}');
} catch (Exception e) {
throw new AuraHandledException(e.getMessage());
}
}
public class auth_info{
public string access_token{get;set;}
public string refresh_token{get;set;}
public string error_description{get;set;}
}
}

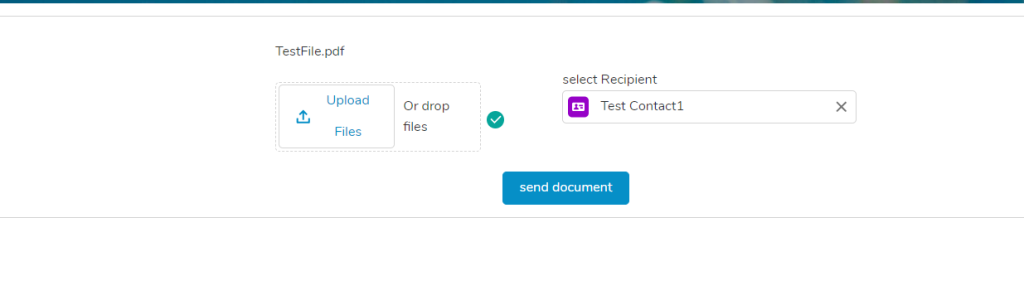

Step 6: create a Lightning web component to upload the document.
docuSignFileuploader.Html
<template>
<lightning-spinner if:true={isLoading}></lightning-spinner>
<lightning-card>
<template lwc:if={showSignIn}>
<div class='slds-align_absolute-center'>
<lightning-button variant="brand" label="signIn"
onclick={sign_docuSign}></lightning-button>
</div>
</template>
<template lwc:else>
<div>
<div class='slds-align_absolute-center'style="width:fit-content">
<div style="width:fit-content">
{fileName}
<lightning-file-upload name="fileUploader" accept='.pdf'
onuploadfinished={handleUploadFinished}
class="fileUploader">
</lightning-file-upload>
</div>
<lightning-icon icon-name='action:approval'
class="uploadSuccess_icon"
if:true={isUploaded_to_SF}></lightning-icon>
<div style="margin-left:10%;width: 20pc;">
<lightning-record-edit-form object-api-name="User">
<label for="fieldid">select Recipient</label>
<lightning-input-field field-name="ContactId" id="fieldid"
variant="label-hidden"
onchange={handleRecipient_change}></lightning-input-field>
</lightning-record-edit-form>
</div>
</div><br>
<div class='slds-align_absolute-center'
style="width:fit-content">
<lightning-button label="send document" variant="brand"
onclick={send_document_to_docuSign}
disabled={isButtonEnable}></lightning-button>
</div>
</div>
</template>
</lightning-card>
<div if:true={isUploaded}>
<section class="slds-modal slds-fade-in-open">
<div class="slds-modal__container">
<button class="slds-button slds-button_icon slds-modal__close
slds-button_icon-inverse">
<lightning-icon icon-name="utility:close" variant='inverse'
onclick={closePopUp}></lightning-icon>
<span class="slds-assistive-text">Cancel and close</span>
</button>
<div class="slds-modal__header">
<h1 id="modal-heading-01" class="slds-modal__title
slds-hyphenate">Success</h1>
<lightning-icon icon-name="action:approval"
style="zoom:60%"></lightning-icon>
</div>
<div class="slds-modal__content slds-p-around_medium"
id="modal-content-id-1">
<h3 style="text-align:center">Your Document SuccessFully Sent
to DocuSign.</h3><br>
<div>
<table class="docuSign_table">
<tr>
<td>Document Name: {uploaded_document.name}</td>
<td>Recipient: <lightning-formatted-email
label={uploaded_document.recipient}
value={uploaded_document.recipient}>
</lightning-formatted-email></td>
</tr>
<tr>
<td>Salesforce DocumentId:
<a>{uploaded_document.contentVersionId}</a></td>
<td>Status: {uploaded_document.status}</td>
</tr>
<tr>
<td>DocuSign EnvelopId:
<a>{uploaded_document.envelopeId}</a></td>
</tr>
</table>
</div>
</div>
<div class="slds-modal__footer">
<button class="slds-button slds-button_neutral"
aria-label="Cancel and close"
onclick={closePopUp}>Close</button>
</div>
</div>
</section>
<div class="slds-backdrop slds-backdrop_open"
role="presentation"></div>
</div>
</template>
docuSignFileuploader.Js
import { LightningElement, track, api, wire } from 'lwc';
import { getRecord,createRecord } from 'lightning/uiRecordApi';
import sendDoc from '@salesforce/apex/docuSignCtrl.sendDoc_for_sign';
import docuSign_Credentials from
'@salesforce/apex/docuSignCtrl.docuSign_Credentials';
import getAccessToken from
'@salesforce/apex/docuSignCtrl.getDocuSignToken;
export default class LightningUploader extends LightningElement {
uploaded_document = {};
AccessToken;
showSignIn;
isUploaded;
isUploaded_to_SF;
isLoading;
fileName;
@track recipientData;
recipient_conId;
signIn_url;
@wire(getRecord, { recordId: '$recipient_conId', fields:
['Contact.Id', 'Contact.Name', 'Contact.Email'] })
recipientRecord({ error, data }) {
if (data) {
this.isLoading = false;
this.recipientData = data;
}
}
connectedCallback() {
this.isLoading = true;
let docuSign_authCode = new
URL(window.location.href).searchParams.get('code');
getAccessToken({ authCode: docuSign_authCode }).then((res) => {
this.showSignIn = false;
this.AccessToken = res;
this.isLoading = false;
})
}
handleUploadFinished(event){
console.log('event>>>',event);
this.uploaded_document = {};
let uploadedDoc=event.detail.files[0];
this.uploaded_document['contentVersionId'] =
uploadedDoc.contentVersionId;
this.uploaded_document['name'] = uploadedDoc.name;
this.fileName = uploadedDoc.name;
this.isUploaded_to_SF=true;
}
handleRecipient_change(event) {
this.recipient_conId = event.target.value;
if (this.recipient_conId) {
this.isLoading = true;
} else {
this.recipientData = null;
}
}
get isButtonEnable() {
if (this.recipientData &&
this.uploaded_document.hasOwnProperty('contentVersionId')) {
return false;
} else {
return true;
}
}
send_document_to_docuSign() {
this.isLoading = true;
if (this.AccessToken && this.recipientData &&
(this.uploaded_document.hasOwnProperty('contentVersionId')
&& this.uploaded_document['contentVersionId'])) {
sendDoc({ documentId:
this.uploaded_document['contentVersionId'],
accessToken: this.AccessToken, recipientEmail:
this.recipientData.fields.Email.value, recipientName:
this.recipientData.fields.Name.value })
.then((res) => {
const documentRes = JSON.parse(JSON.parse(res));
this.uploaded_document['envelopeId'] =
documentRes['envelope']['envelopeId'];
this.uploaded_document['recipient'] =
documentRes['recipient'];
this.uploaded_document['status'] =
documentRes['envelope']['status'];
this.isUploaded = true;
this.isLoading = false;
})
} else {
let toastMessage = '';
if (!this.AccessToken) {
toastMessage += 'Authentication failure,check
accessToken!';
}
if (!this.recipientData) {
toastMessage += (toastMessage) ? ',No recipient Found' :
'No recipient selected!';
}
if(!this.uploaded_document.hasOwnProperty('contentVersionId'))
{
toastMessage += (toastMessage) ? ',Please uploade the
Document' : 'Please uploaded Document!';
}
this.showToastMessage(toastMessage, 'info');
this.isLoading = false;
}
}
sign_docuSign() {
docuSign_Credentials().then((res)=>{
let signIn_url = 'https://account.docusign.com/oauth/auth?redirect_uri=https://YourEndPoint/democommunity/s/docusign&response_type=code&client_id='+res.ClientId__c+'&scope=signature';
window.open(signIn_url, 'self');
})
}
closePopUp() {
this.isUploaded = false;
}
showToastMessage(message, variant) {
this.dispatchEvent(
new ShowToastEvent({
title: variant,
variant: variant,
message: message
})
)
this.isLoading = false;
}
}

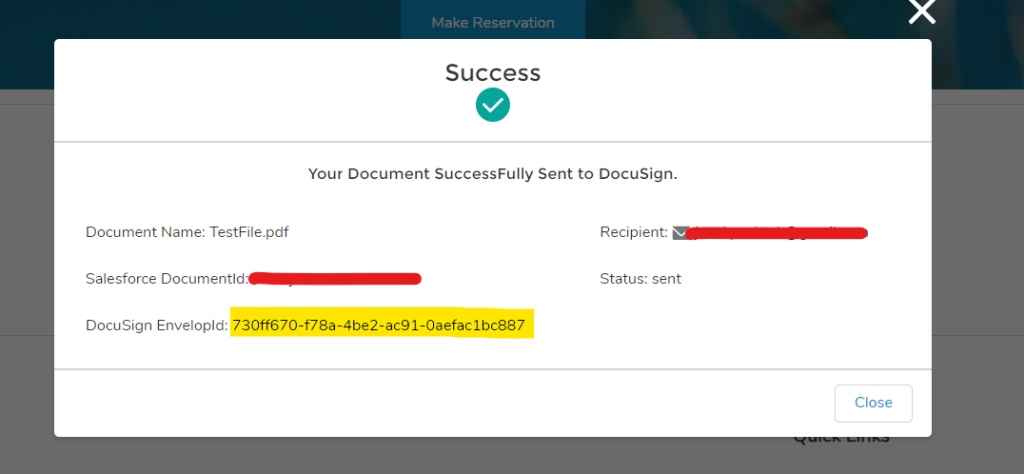

Output:

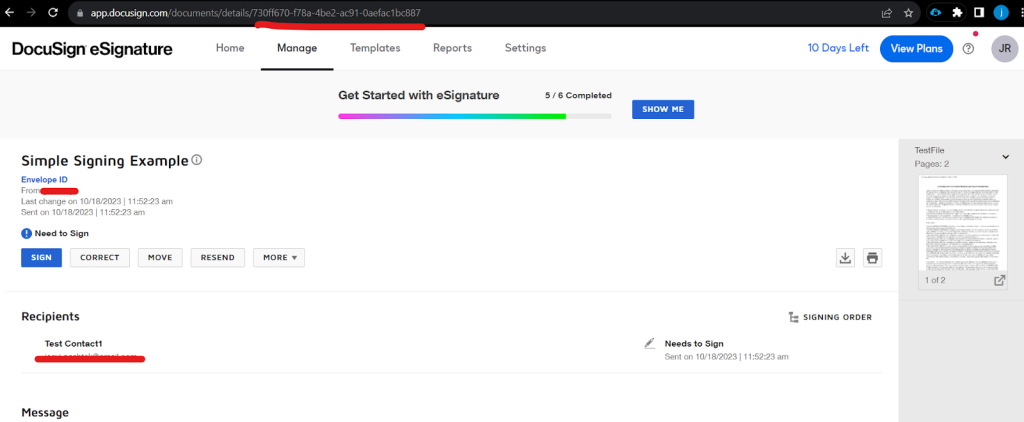

We can see the envelope ID in the DocuSign just created from Salesforce.
